YJV

YJ----Crosslinked polyethylene insulation

V----PVC sheath

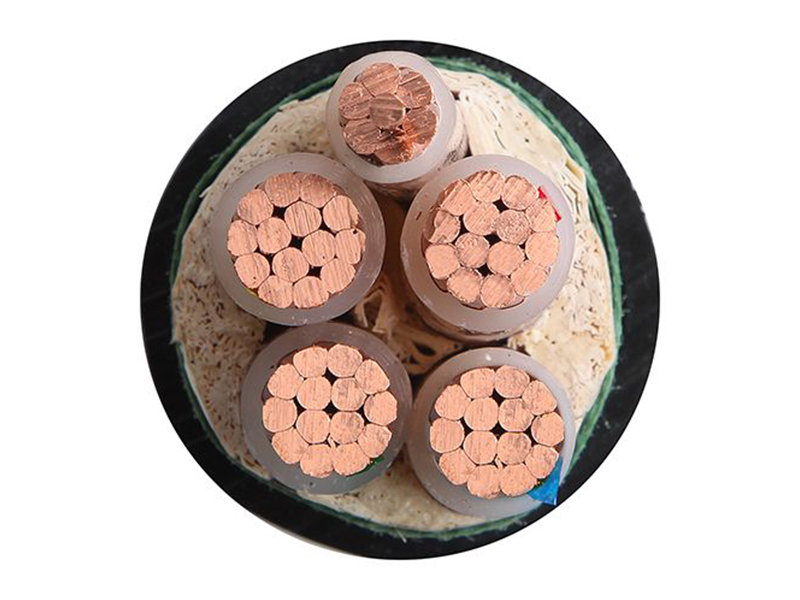

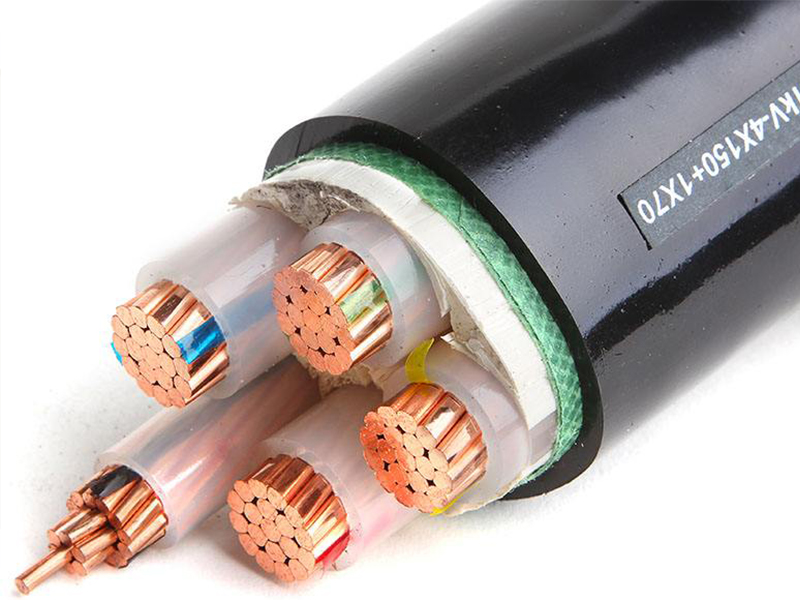

YJV The name of the cable type is: XLPE insulated PVC sheathed power cable.

XLPE insulated power cable has excellent thermal mechanical properties, excellent electrical and chemical corrosion resistance. It has the advantages of simple structure, light weight, and not limited to falling drop. It is a new cable widely used in urban power grid, mine and factory.

The insulated crosslinked polyethylene (PE) of the cable is a cross-linked polyethylene that uses chemical methods and physical methods to convert polyethylene of linear molecular structure into a three-dimensional reticulated polyethylene, which greatly improves the thermal mechanical properties of polyethylene and thus maintains excellent electrical properties.
The maximum rated working temperature of the conductor of XLPE insulated power cable is 90 C, which is higher than PVC insulation and polyethylene insulated cable, so the capacity of cable is further improved.

Standard of execution

GB/T12706.2-2008 Rated voltage 1KV （Um=1.2KV）35KV (Um=1.2KV) extruded insulated power cable and accessories

IEC60502-2:2005Rated voltage 1~30KVExtruded insulated power cable and accessories

Use requirements

working temperature
The maximum working temperature of the conductor is 90 C
Short circuit temperature of conductor
The maximum temperature should not exceed 250 degrees centigrade, and the longest time does not exceed 5 seconds.
Installation temperature
The installation temperature of the cable installation is not less than 0 degrees C
Laying in the air: ambient temperature 40 C
Laying in the soil: ambient temperature 25 C

Detailed parameters

Model

Copper core

Model

Aluminum core

Name

Scope of application

YJV

YJLV

Copper core or aluminum conductor XLPE insulated PVC sheathed power cable

In the room, in the tunnel, in the cable trench and in the pipe, it can also be buried in the loose soil. The cable can bear certain traction, but can not bear the mechanical force.

YJV22

YJLV22

Copper core or aluminum core XLPE insulated steel tape armored PVC sheathed power cable

It is suitable for indoor, tunnel, cable trench and underground direct buried installation. Cable can bear mechanical external force, but it can not bear large pulling force.

Scope of application

This product is suitable for fixed laying in distribution network or industrial device with rated voltage 0.6/1KV or below. It is often used for aerial work.

Use characteristics

The power frequency rating of UO/U is 0.6/1KV.
Cable conductor allows maximum long-term operating temperature of 90 C.
The maximum temperature of cable conductor should not exceed 250 C when short circuit (the longest duration is not more than 5S). .
The ambient temperature should not be less than 0 degrees centigrade when laying the cable.
Bending radius of cable: not less than 15 times of the outer diameter of cable.

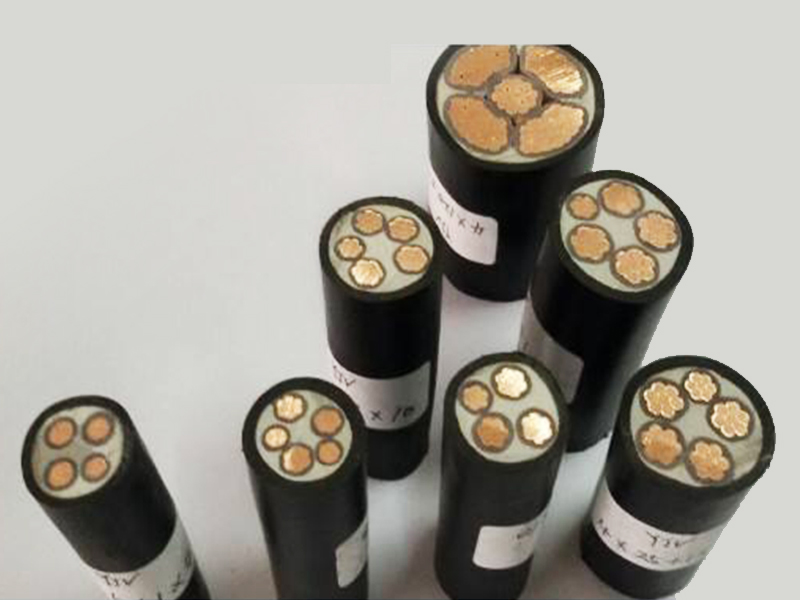

Core number
Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1, 3+2, 4+1, pre branch cables, etc.
